Specification diagrams

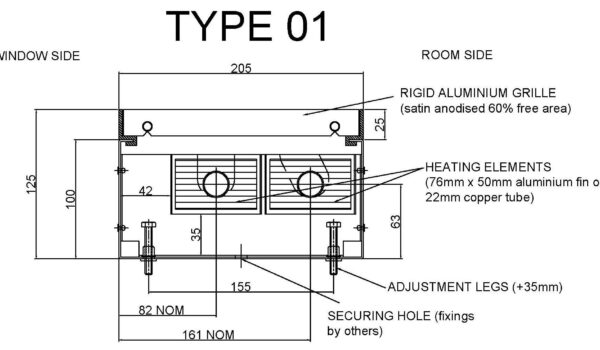

Type 01 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 M/Sec. (690 W/M Finned Element Length)

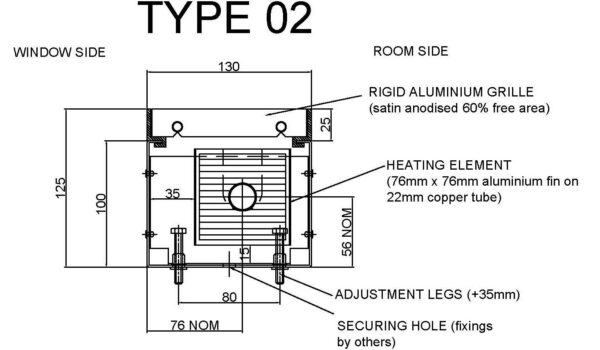

Type 02 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 M/Sec. (430 W/M Finned Element Length)

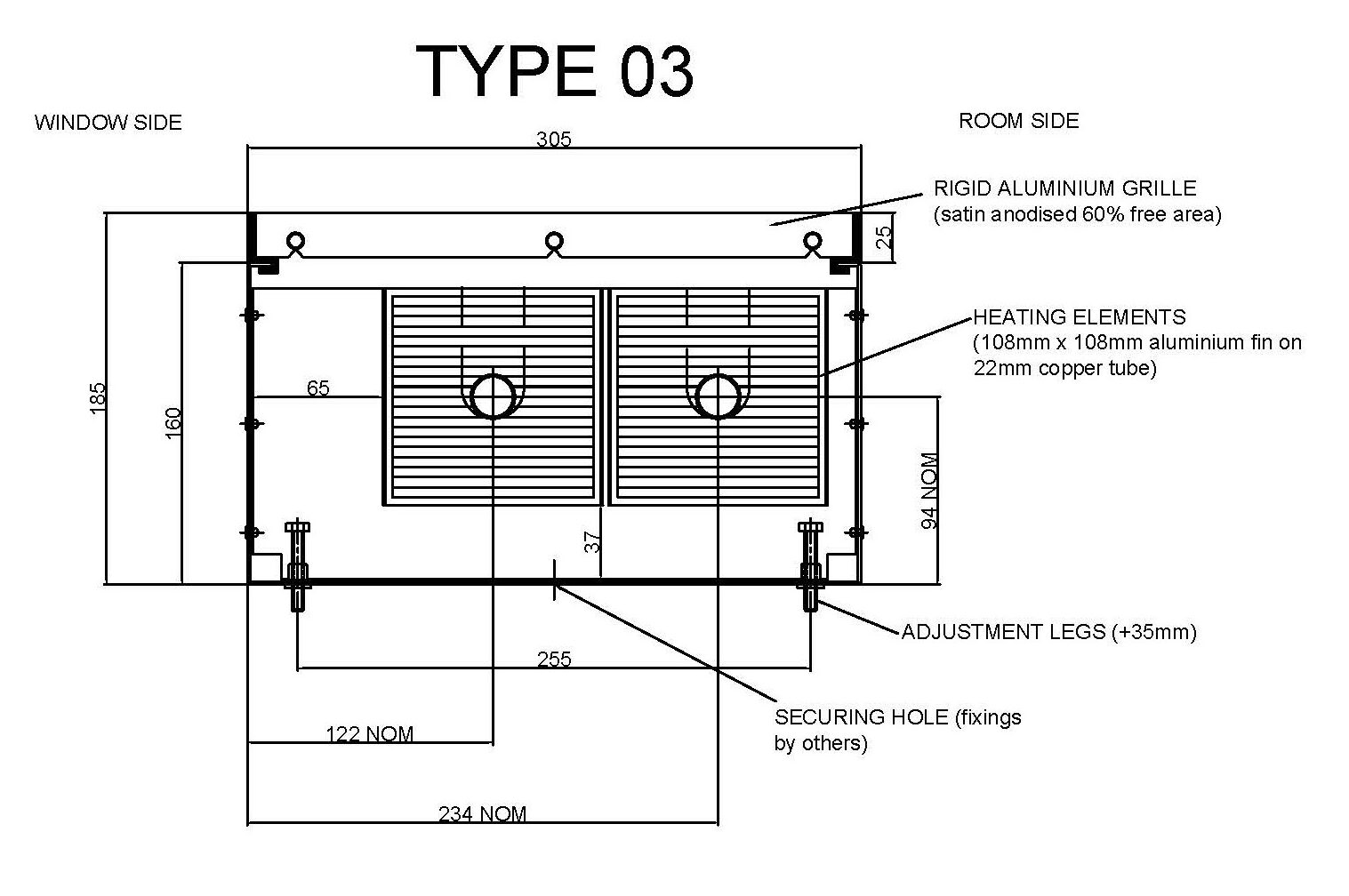

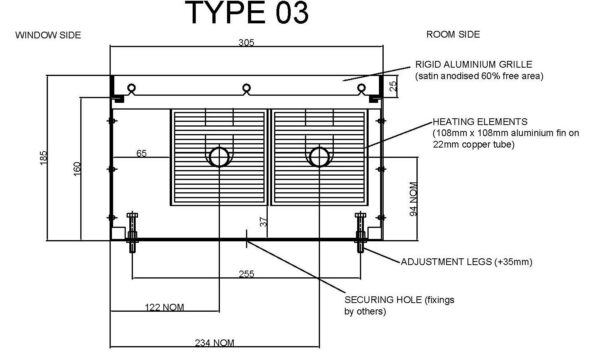

Type 03 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 m/sec. (1180 w/m Finned Element Length)

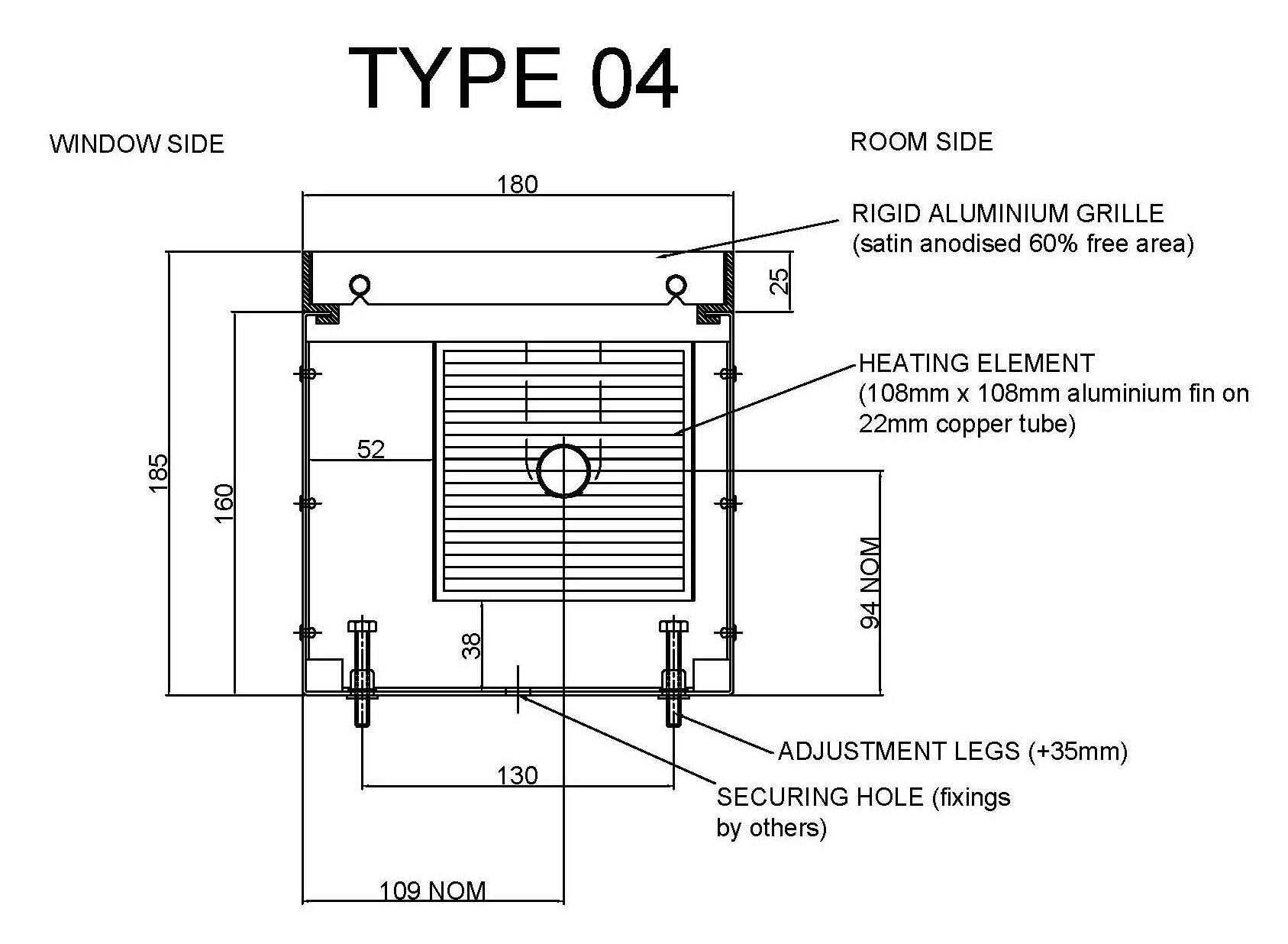

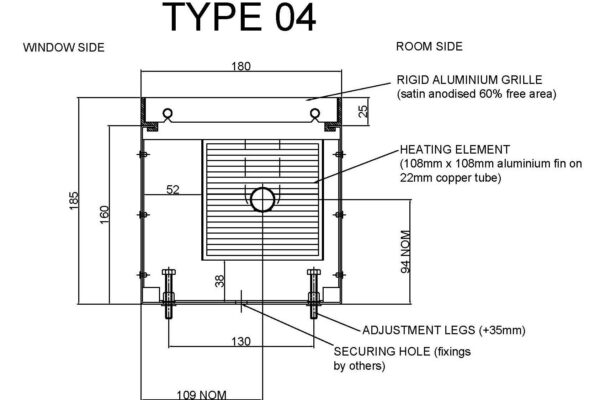

Type 04 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 m/sec. (790 w/m Finned Element Length)

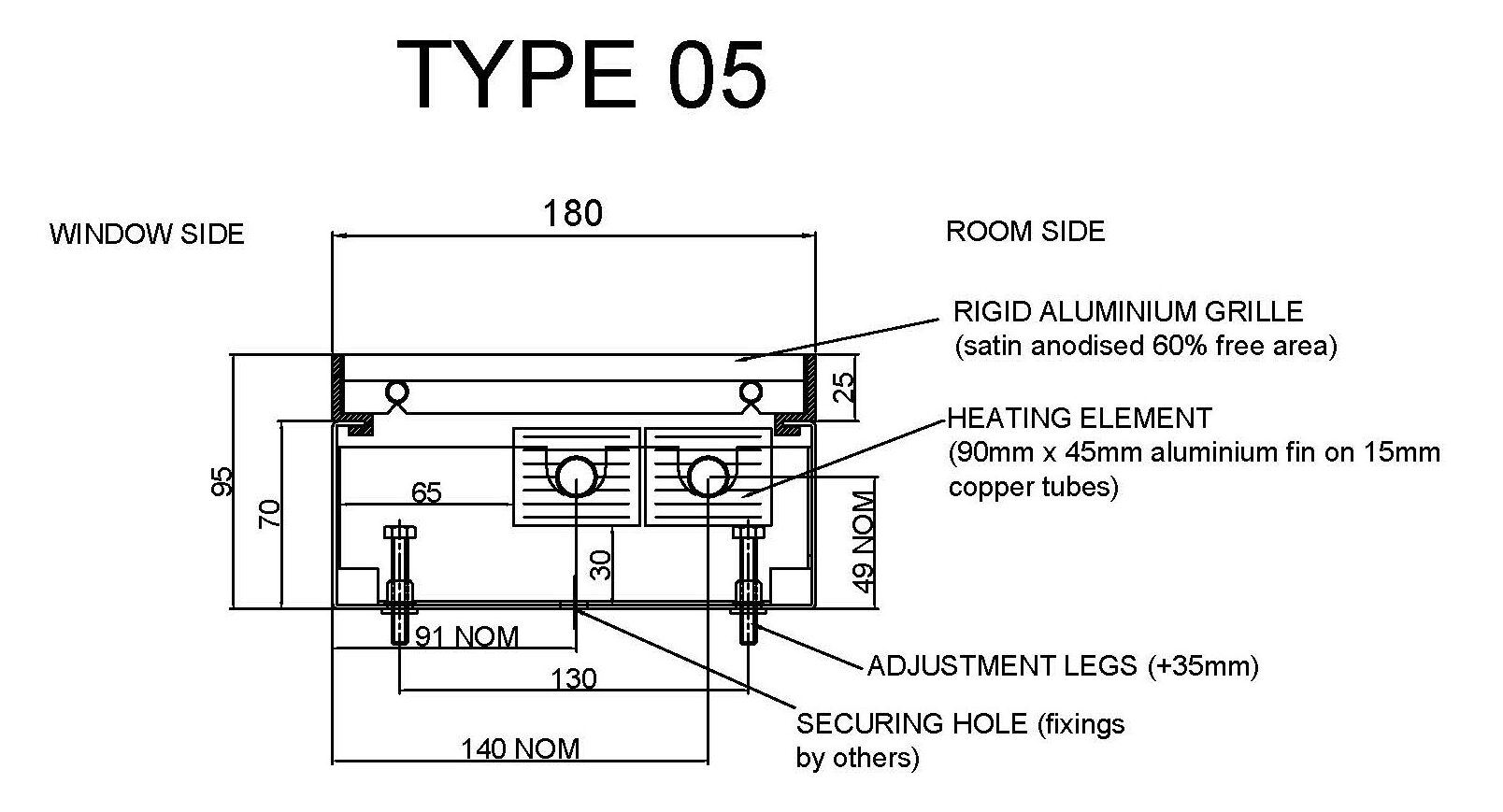

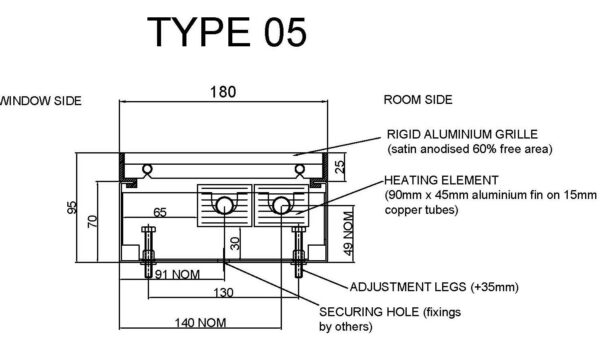

Type 05 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 m/sec. (250 w/m Finned Element Length)

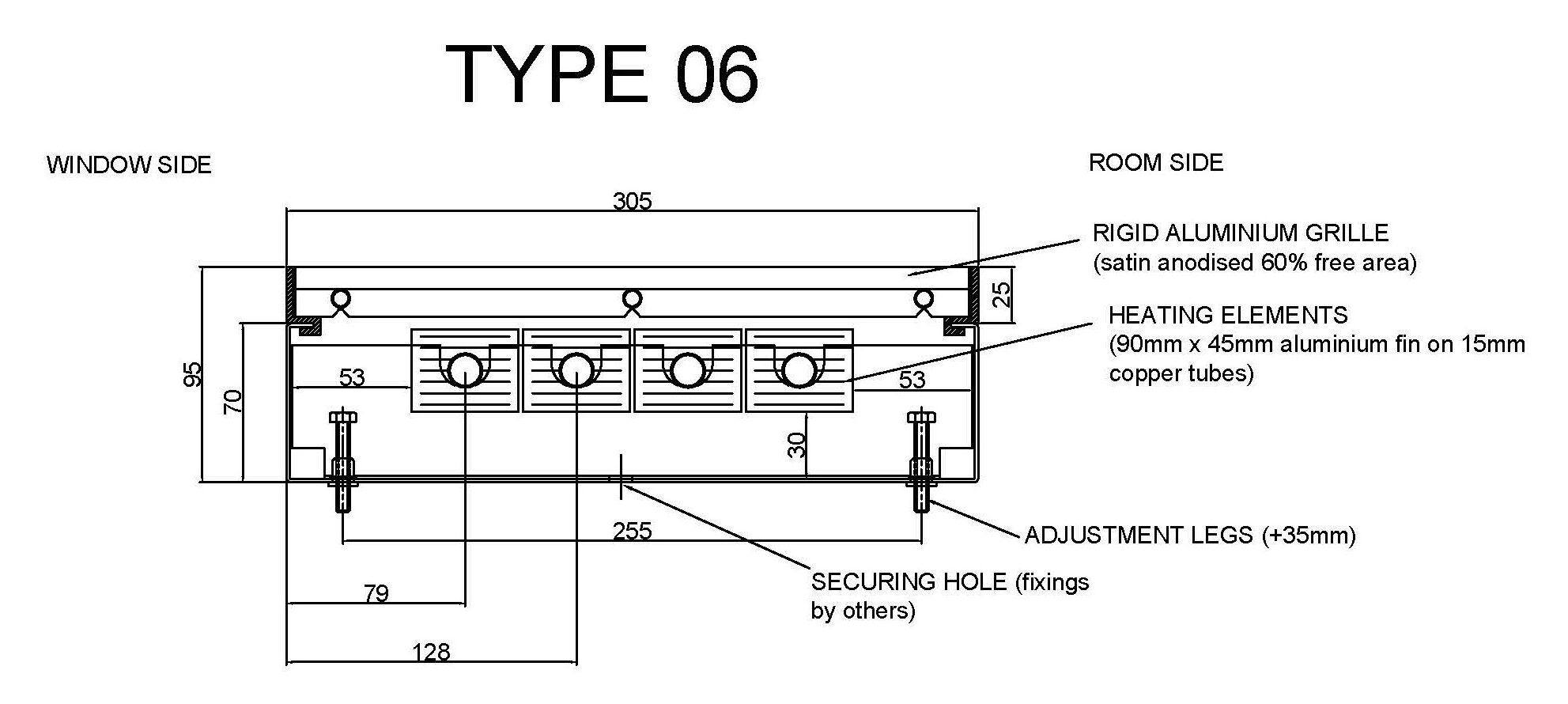

Type 06 Specification

Outputs Based on Conditions Of: 76.5 Deg. C MWT. - 18 Deg. C EAT. - F/R 0.92 m/sec. (350 w/m Finned Element Length)
